Laser Tattoo Removal Machine
Newangie has been committed to the research and development of high-quality beauty equipment since 2008. After 16 years of continuous development and innovation, it has now developed into one of China's leading beauty equipment manufacturers, and its products are widely used by dealers and beauty salons around the world. Our products include Commercial Tattoo Removal Machine, Q Switch Nd Yag Laser Tattoo Removal Machine, Nd Yag Laser Tattoo Removal Machine, Laser Machine To Remove Tattoo, etc.
Why Choose Us
Sales Market
Our products have been successfully sold to numerous regions around the world, such as the United States, Canada, Australia, France, Germany, Italy, Spain, Mexico, Malaysia, Singapore, and Japan.
Strong Strength
Our factory occupies an area of over 10,000 square meters and is equipped with advanced production facilities, including 8 automatic production lines and precise testing equipment. Moreover, there are more than 150 well-trained technicians to guarantee the consistent quality of our products.
Quality Control
All our products are certified by CE and ISO, ensuring that each device meets the highest standards.
Accept ODM/OEM Service
No matter what equipment you need or what your requirements are, we have the appropriate solution. Experience customized excellence with our OEM/ODM services.
Types of Laser Tattoo Removal Machines
Our Company Has More Products to Offer, Please Browse the Product Categories on the Website, If You Have Any Needs, Please Contact Us.

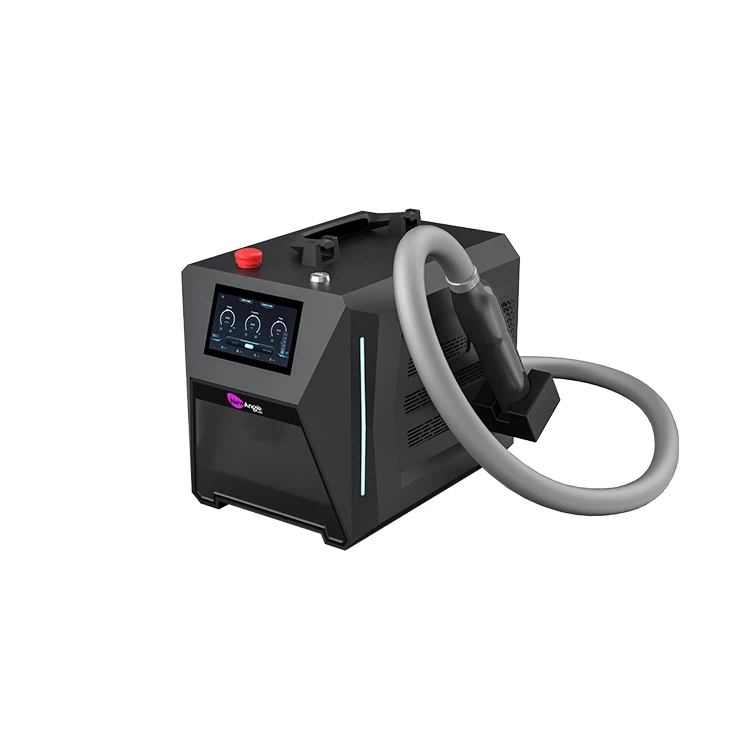

Q-Switched Lasers
Q-switched lasers are the most commonly used type of laser for tattoo removal. They are effective at targeting the ink particles without damaging the surrounding skin. Q-switched lasers emit high-energy, short-duration pulses that penetrate the skin and break up the ink particles.
Alexandrite Lasers
Alexandrite lasers are another type of laser used for tattoo removal. They emit a longer wavelength than Q-switched lasers, which allows them to penetrate deeper into the skin. Alexandrite lasers are best suited for removing green and blue ink.

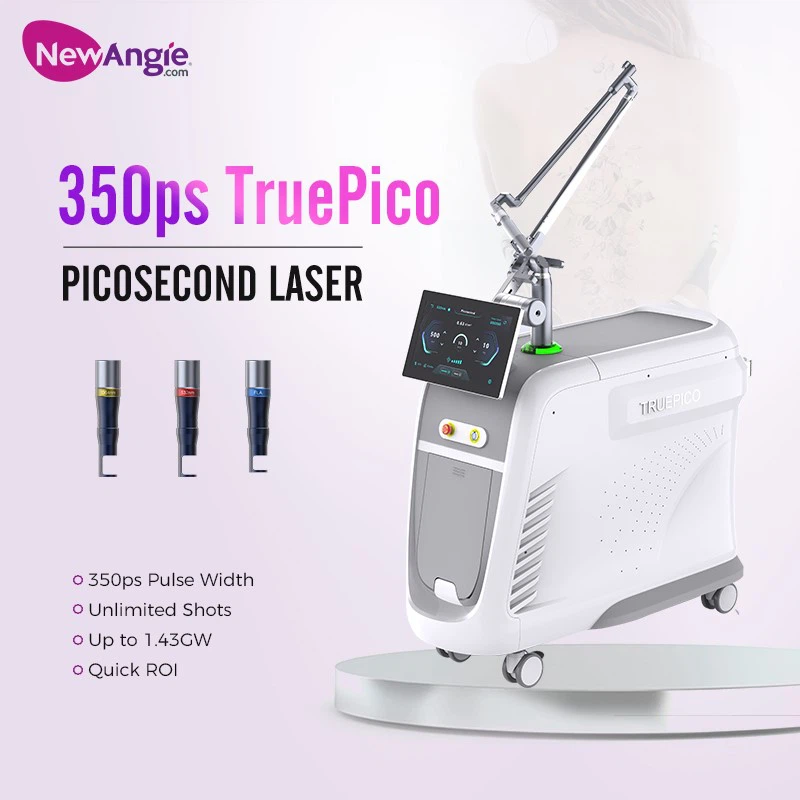

Pico Lasers
Pico lasers are the newest type of laser used for tattoo removal. They emit ultra-short pulses of energy that can break up ink particles into even smaller fragments than Q-switched lasers. This makes Pico lasers more effective at removing stubborn ink colors like green and blue.

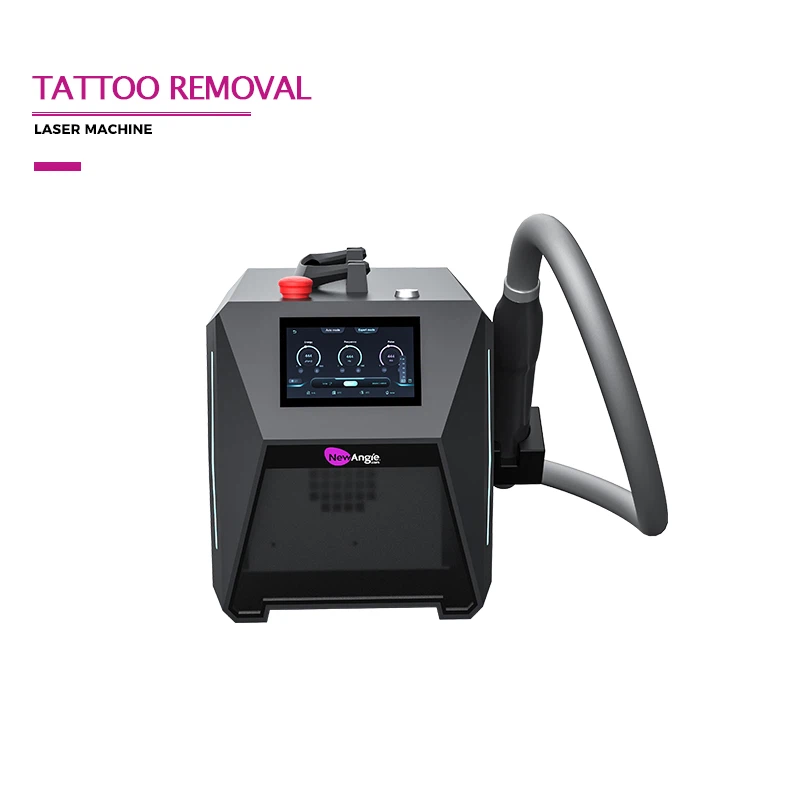

Laser Tattoo Removal Machine Specification
General
|
Dimension |
320(W) x 830(D) x 1010(H) (mm) (Include Arm H : 1620 mm) |
|
Weight |
87.5 Kg |
|
Weight including accessories |
96 Kg |
|
Main voltage |
220/230V, 50/60Hz |
|
Maximum power consumption |
3000 VA |
|
Main current |
12A |
|
Safety class |
Class IV laser |
Laser System
|
Laser type |
Q-Switched Nd:YAG |
|
Wavelength |
1064nm / 532nm |
|
Beam delivery system |
Via 7-articulated arm |
|
Aiming beam |
635nm, 5mW |
|
Energy(@Head Aperture) |
Max Energy @ 1064nm Q-Switched 1.5 mm spot size 56 J/cm2 Max Energy @ 532nm Q-Switched 1 mm spot size 27 J/cm2 Up to 2200mJ @ 1064nm PTP Q-Switched Up to 600mJ @ 532nm PTP Q-Switched Up to 1200mJ @ 1064nm Q-Switched Up to 500mJ @ 532nm Q-Switched Up to 3400mJ @ 1064nm Quasi-Long |
|
Pulse width |
5~7ns @ 1064nm Q-Switched 5~7ns @ 532nm Q-Switched ~20ns @ 1064nm PTP Q-Switched ~20ns @ 532nm PTP Q-Switched 300㎲ @ 1064nm Quasi-Long |
|
Frequency |
Up to 25Hz @ 1064nm Q-Switched Up to 15Hz @ 532nm Q-Switched Up to 15Hz @ 1064nm PTP Q-Switched Up to 15Hz @ 532nm PTP Q-Switched Up to 25Hz @ 1064nm Quasi-Long |
|
Laser cooling |
Water-to-air heat exchanger |
|
Beam mode quality |
Top Hat Mode |
Spot size (*Optional)
|
Zoom Hand piece |
1064nm (Ø 1.5, 2, 3, 4, 5, 6, 7.5, 9,10)mm 532nm (Ø 1, 1.5, 2.5, 3.5, 4.5, 5.5, 7, 8.5, 9.5)mm |
|
1064nm Fractional Hand piece |
6 x 6 mm², 9 x 9 dots, Up to 5.2J/cm² |
|
532nm Fractional Hand piece |
6 x 6 mm², 9 x 9 dots, Up to 1.3J/cm² |
● Powerful Pulse Energy: Ensures efficient pigment removal.
● Airout Pole: Enhances water circulation to protect the handle.
● Emergency Button: Provides immediate shutdown in urgent situations.
● Safe and Non-Invasive: Offers a high-energy, painless treatment with no downtime.
● Portable: Compact design with easy-to-use features.
● Multi-Language LCD Display: Facilitates simple operation.
● Tattoo Removal
● Permanent Makeup Removal
● Pigmented Lesions
● More & freckle Removal
● Skin Rejuvenation Carbon Peeling
Laser Tattoo Removal Machine Operation Steps
Cool and clean the treatment area
Cool the treatment area with cooling packs for 10 to 15 minutes, then you can use a clean gauze to wipe and clean the treatment area.
Add some water through the funnel
Before using, you need to fill in some water through the funnel until water is out from the water outlet. Because this Q-switched laser tattoo removal machine has a water cooling system.
Choose the operating laser head
3 operating laser heads are available. 532 nm laser head is for color tattoo removal, 1064 nm laser head is for black and dark tattoo removal, and 1320 nm laser head is for black doll treatment.
Connect the machine and adjust the settings
Install the laser head well and plug in the power cable. Then use the key to turn on the machine and choose the operating modes. There are four modes of this machine: tattoo removal, eyebrow tattoo removal, freckle removal, and black doll treatment.
Apply the Gel
Apply a cooling gel to the area to be treated in order to protect the skin.
Laser probe operation
There is a foot switch to control the laser, and you can hold the laser probe from near to far.
Black doll treatment
Install the black doll treatment head. Then put some carbon toner on the skin and apply it evenly. Stat the treatment when the carbon toner is dry.
One-Stop Service
Technical Support
Our dedicated technical support team stands ready to guide you through any challenges, ensuring your beauty equipment functions flawlessly. From troubleshooting to optimizations, we're here to make technology work for you.
Clinical Training
Our comprehensive clinical training equips your professionals with the expertise to maximize the potential of our beauty equipment. Elevate customer satisfaction through skillful execution and innovative techniques.
Installation Instructions
Our experts provide step-by-step installation guidance, ensuring your beauty equipment is up and running efficiently. Seamlessly integrate our technology into your space, and let the transformation begin.
Online Support
Instant solutions, just a click away. Our online support platform connects you directly with our experts, ensuring timely assistance whenever you need it. From inquiries to updates, experience the convenience of virtual guidance in real time.
Video
